Description
The SG50 Shelving Module System is the most widely used and standard system across the UK. With 50mm adjustable shelf spacing, it allows for quick installation and high customisability.

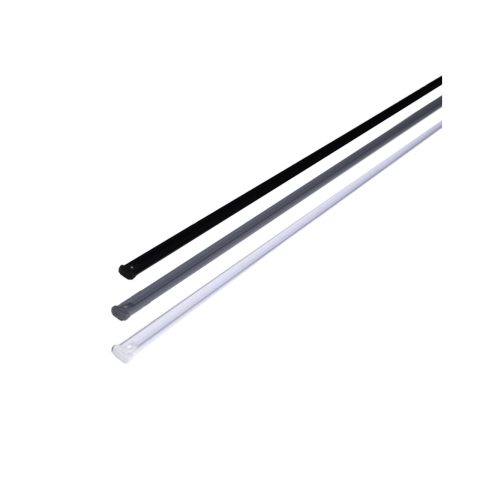

It is the preferred system among leading UK retailers and is compatible with a range of similar systems. A wide selection of accessories and the use of integrated LED lighting enhances the product and merchandise visibility.
Key Features
- Standard 50 mm pitch perforation
- Designed for easy installation with adjustable shelf spacing
- Modular components, designed for multiple store solutions
- Compatible with a wide range of accessories
- Classic system compatible with other similar formats
- U shaped profiles for effortless mounting of price holders, barriers, and dividers
- Stocked colours – Dark Grey (Ral 7015), Black (Ral 9005), Silver (Ral 9006) and Jura (Ral 9001).
- More colours available on request
Technical Specifications
| Width (W) (mm) | 500, 665, 800, 1000, 1250, 1330 * |
|---|---|
| Shelf Depth (D) (mm) | 200, 250, 300, 370, 470, 570, 670, 770 |
| Height (H) (mm) | 1200, 1400, 1600, 1800, 2000, 2100, 2200, 2400, 2610, 2810, 3010 ** |
| Inclining Angle for Hinged Shelves | 0°, 20°, 35° |
| Upright Profile (mm) | 30×30, 60×30, 80×30, 110×30 |
| Perforation Pitch (mm) | 50 |
| Base Shelf Level Height (mm) | 160–190 |
*Factory order.
**We can cut these to desired size.
